 Test and Calibration Weights
Use for your own internal calibration programs!

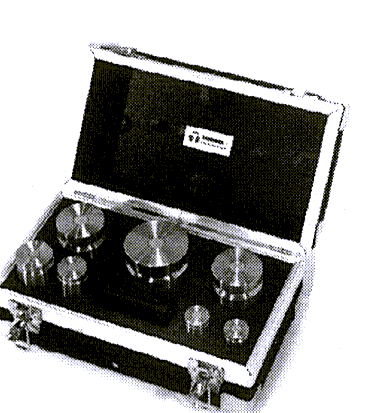

Lessen the expense of outsourced calibration services!		 Our Test Weights are of the highest quality available.  They are backed by a reputation known throughout the industry.  Troemner and Rice Lake have years of experience in making precision weights.  NIST Class "F" highly polished stainless steel; includes heavy duty, rugged case. Foam insert keeps weights in place. Light weights (100g and lighter) are in a smaller leatherette case inside the large case.

Stainless Steel - Metric Weight Sets - NIST Class F
ALG-100-1 Set  (100g ~ 1g)
(1)      100g
(1)       50g
(2)       20g
(1)       10g
(1)         5g
(2)         2g
(1)         1g

Total: 9 pieces; 210g
Dimensions: approx. 3.5" x 2.5" x 1" high
ALG-100-1      Price:  $ 185.00
Statement of Accuracy:     $   45.00 add'l.
Traceable Certificate:    $ 205.00 add'l


Gram Weight Set SS NIST Class F   ALG-100-01 Set  (100g ~ 1 mg)
(1)      100g             (2)    200mg
(1)       50g              (1)    100mg
(2)       20g              (1)      50mg
(1)       10g              (2)      20mg
(1)         5g              (1)      10mg
(2)         2g              (1)        5mg
(1)         1g              (2)        2mg
(1)    500mg             (1)        1mg

Total: 21 pieces; 211.11g
Dimensions: approx. 3.5" x 2.5" x 1" high
ALG-100-01      Price:  $ 215.00
Statement of Accuracy:     $   45.00 add'l.
Traceable Certificate:    $ 485.00 add'l


Weight Set NIST Class F - 5 kg  ALG-5000-01 Set   (5000g ~ 1mg)
(1)        5,000g
(2)        2,000g
(1)        1,000g
(1)           500g
(2)           200g
(1)  ALG-100-01 set

Total: 28 pieces; 11,111.11g
Dimensions: 14.5" x 9.25" x 8.25"h
ALG-5000-01      Price:  $ 725.00
Statement of Accuracy:     $   45.00 add'l.
Traceable Certificate:    $ 740.00 add'l


Stainless Steel - Avoirdupois Weight Sets - NIST Class F

ALG-15D
Decimal Set

(2)      .2 lb
(1)      .1 lb
(1)      .05 lb
(2)      .02 lb
(1)      .01 lb
(1)      .005 lb
(2)      .002 lb
(1)      .001 lb

 Total 0.610 lb
 4" x  2.88" x 1.25"h

 Price: $ 175.00

ALG-30F
 Fraction Set

(1)        4 oz
(1)        2 oz
(1)        1 oz
(1)        1/2 oz
(1)        1/4 oz
(1)        1/8 oz
(1)        1/16 oz
(2)        1/32 oz

 Total  8 oz
 4.25" x 2.25" x 1.25"h

 Price:  $ 165.00

ALG-50D
Decimal Set

(5)        5 lb
(5)        1 lb
(1)        0.5 lb
(1)  ALG-15D set

 Total   31.61 lb
 14.5" x 9.25" x 8.25"h

 Price:  $ 980.00

ALG-50F
Fraction Set

(5)        5 lb
(5)        1 lb
(1)        8 oz
(1) ALG-30F Set

 Total    31 lb
 14.5" x 9.25" x 8.25"h

 Price:  $ 965.00

ALG-50C
Combination Set

(5)       5 lb
(5)       1 lb
(1)       8 oz
(1) ALG-15D Set
(1) ALG-30F Set

 Total   31.61 lb
 14.5" x 9.25" x 8.25"h

 Price:   $ 990.00

Stainless Steel - Individual Weights - Avoirdupois
NIST Class F

Weight Tolerance Dimensions Stock No. Price Traceable
Certificate
diameter height
0.5 lb  [photo] +/- 45 mg 1.25"  1-5/8" AL12624 $   45.00 $ 35.00 add'l.
1 lb +/- 70 mg 1.5" 2.25" AL12596 $   55.00 $ 60.00 add'l.
2 lb +/- 91 mg 2" 2.5" AL12598 $   65.00 $ 60.00 add'l.
5 lb +/- 227 mg 2-5/8" 3-11/16" AL12604 $ 120.00 $ 75.00 add'l.
10 lb +/- 450 mg 3.5" 4-1/16" AL12606 $ 190.00 $ 75.00 add'l.
10 lb, grip handle [photo] +/- 450 mg 5" 3-1/16" AL12673 $ 275.00 $ 75.00 add'l.
20 lb, grip handle +/- 910 mg 5" 4-7/8" AL12674 $ 460.00 $ 75.00 add'l.
25 lb, grip handle +/- 1.1 g 5" 5.75" AL12675 $ 500.00 $ 75.00 add'l.
50 lb, grip handle +/- 2.3 g 6" 7.25" AL12677 $ 785.00 $ 75.00 add'l.

Stainless Steel - Individual Weights - Metric
NIST Class F,  ASTM Class 4,  ASTM Class 1

    NIST Class F   ASTM Class 4*   ASTM Class 1*
Weight   Stock No. Tol. +/- Price   Stock No. Tol. +/- Price   Stock No. Tol. +/- Price
1 g   AL12499  0.90 mg $   30.00   AL82733 0.20 mg $   50.00   AL82607 0.034 mg $    70.00
2 g   AL12501  1.12 mg $   30.00   AL82732 0.26 mg $   50.00   AL82606 0.034 mg $    80.00
5 g   AL12503 1.5 mg $   30.00   AL82730 0.36 mg $   50.00   AL82604 0.034 mg $    90.00
10 g   AL12505 2.0 mg $   35.00   AL13268 0.5 mg $   70.00   AL12944 0.050 mg $    80.00
20 g   AL12523 4.0 mg $   35.00   AL13284 0.7 mg $   70.00   AL12960 0.074 mg $    80.00
50 g   AL12527 10 mg $   38.00   AL13288 1.2 mg $   75.00   AL12964 0.12 mg $    80.00
100 g   AL12507 20 mg $   42.00   AL13270 2.0 mg $   75.00   AL12946 0.25 mg $    90.00
200 g   AL12509 40 mg $   50.00   AL13272 4.0 mg $   95.00   AL12948 0.50 mg $   105.00
500 g   AL12511 70 mg $   65.00   AL13274 10 mg $  115.00   AL12950 1.2 mg $   130.00
1 kg   AL12513 100 mg $   70.00   AL13295 20 mg $  140.00   AL12971 2.5 mg $   150.00
2 kg   AL12515 200 mg $  120.00   AL13276 40 mg $  160.00   AL12952 5.0 mg $   190.00
5 kg   AL12521 500 mg $  195.00   AL13282 100 mg $  450.00   AL12958 12 mg $   610.00
5 kg, grip handle   AL12564 500 mg $  275.00   AL13313 100 mg $  385.00   AL12989 12 mg $   620.00
10 kg, grip handle   AL12567 1.0 g $  510.00   AL13315 200 mg $  615.00   AL12991 25 mg $   850.00
20 kg, grip handle   AL12569 2.0 g $  720.00   AL13317 400 mg $  890.00   AL12993 50 mg $  1335.00
25 kg, grip handle   AL12571 2.5 g $  835.00   AL13319 500 mg $  1090.00   AL12995 62 mg $  1520.00

*Class 4 and Class 1 weights (excluding grip handle weights)  include carry case and white glove. Traceable Certificate is available - please call us for pricing.

Also, please contact us for special pricing on volume orders and/or other classes and denominations not listed above:
1-800-836-8445  or info@algen.com

For additional tolerances or uncertainties of weights please refer to Weight Tolerances Chart  Requires Adobe Acrobat Reader - Free Download Here or contact us.

Kindly allow for UPS shipping/handling and applicable sales tax.


Brass Weight Set, Metric
ASTM Class 6 -   1 g or greater
NIST Class C -   less than 1g

.
Stock No. Description Price
238-16 (2000g ~ 1g) set, hinged covered weight box discontinued (see below)
213-16 (1000g ~ 1g) set, hinged covered weight box discontinued (see below)
212-16 (500g ~ 1g) set, hinged covered weight box discontinued (see below)
214-16 (200g ~ 1mg) set, hinged covered weight box discontinued (see below)
218-16 (500mg ~ 1mg) set, hinged covered weight box discontinued (see below)

Economical Weight Set, SS with Carry case

Economical Stainless Steel Weight Set, Metric
ASTM Class 7
Carry case included.
Stock No. Description Number
of Pieces		 Price Traceable
Certificate
338S (2000g ~ 1g) set 14 $  250.00 $ 115.00 add'l.
338-01S (2000g ~ 1mg) set 26 $  265.00 $ 135.00 add'l.
313S (1000g ~ 1g) set 13 $  145.00 $ 115.00 add'l.
313-01S (1000g ~ 1mg) set 25 $  160.00 $ 135.00 add'l.
312S (500g ~ 1g) set 12 $   95.00 $ 115.00 add'l.
312-01S (500g ~ 1mg) set 24 $  110.00 $ 135.00 add'l.
314S (200g ~ 1g) set 10 $   70.00 $ 115.00 add'l.
314-01S (200g ~ 1mg) set 22 $   85.00 $ 135.00 add'l.
311S (100g ~ 1g) set 9 $   40.00 $ 115.00 add'l.
311-01S (100g ~ 1mg) set 21 $   85.00 $ 135.00 add'l.
341S (50g ~ 10mg) set 16 $   65.00 $ 115.00 add'l.
318S (500mg ~ 1mg) set 12 $   56.00 $ 125.00 add'l.

Cast Iron Test Weights - Heavy Capacity & Grip Handle

NIST Class "F"  (Avoirdupois)

Weight Stock No. Depth Width Height Tolerance Price
50 lb [photo] AL12839 5.56" 8" 6.38" +/- 2.3g $  130.00
25 lb AL12833 4.75" 6.19" 5" +/- 1.1g $  115.00
20 lb AL12870 4" 6.19" 5" +/- 910mg $    92.00


ASTM Class 7  (Avoirdupois)

Weight Stock No. Depth Width Height Tolerance Price
10 lb [photo] AL12828 3.31" 5.06" 3.88" +/- 1.3g $ 70.00
5 lb AL12823 2.56" 4" 3" +/- 760mg $ 55.00
2 lb AL12874 2.13" 3.13" 1.56" +/- 430mg $ 50.00
1 lb AL12876 1.69" 2.56" 1.25" +/- 270mg $ 48.00
1 lb, flat [photo] AL1LBFLT appr. 3" diameter 1.0" +/- 270mg $ 32.00


NIST Class "F"  (Metric)

Weight Stock No. Depth Width Height Tolerance Price
25 kg [photo] AL12775 5.56" 7.75" 6.75" +/- 2.5g $  150.00
20 kg AL12771 5.5" 7.63" 5.88" +/- 2.0g $  125.00
10 kg AL12767 4.63" 6.19" 5" +/- 1.0g $  120.00


ASTM Class 7  (Metric)

Weight Stock No. Depth Width Height Tolerance Price
5 kg [photo] AL12786 3.25" 5.38" 3.88" +/- 1.4g $ 72.00
2 kg AL12809 2.63" 4.06" 2.69" +/- 750mg $ 60.00
1 kg AL12813 2.13" 3.06" 1.75" +/- 470mg $ 52.00
500 g AL12815 1.63" 2.56" 1.44" +/- 300mg $ 48.00

      Also available:

     q  Custom Weight Sets Custom Weight Set                q  Hook WeightsEconomical hook weights                  q  Slotted Weights Economical SS Slotted Weights


q  Counterpoise Ratio Weights & Hangers Cast Iron Attachment WeightsAttachment Weight Hangers    q  Specialty Weights  Specialty weights for every purposeCustom and specialty weights for every purpose


q  Stainless steel weights in 50 lb denominations or higher available for applications where rust and corrosion are an issue.

q  Serial numbers and/or Traceable Certificates available for an additional fee.

For further information, specifications or quotations please call us at 1-800-836-8445 or email: info@algen.com.

Note:  Kindly refresh all pages periodically as specifications and prices may change without prior notice.

NIST Class "F" specifications and tolerances are listed in NIST Handbook 105-1.  These specifications and tolerances are intended to set forth minimum requirements used, (1) in the field by state and local weights and measures officials in the examination of weighing and measuring devices used in commerce; (2) by device installers and servicemen; (3) as reference standards in state weights and measures laboratories and (4) in industrial, educational and research laboratories.

ALGEN SCALE CORP:  CONSULTANTS IN WEIGHING, COUNTING, AUTOMATION SYSTEMS AND SERVICES

Please call us for price quote and availability on any other weights not listed:
Toll-Free: 1-800-836-8445
Email: sales@algen.com

 Still Need Help?  Try clicking here:
 Choosing the Correct Weight for Your Application

Note:  Kindly refresh all pages periodically as specifications and prices may change without prior notice.  *Please allow for UPS shipping and handling.
