see also:

Veterinary Scales



Livestock Scales

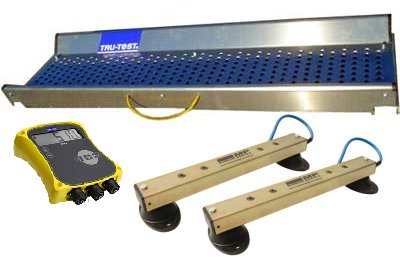

System Package I: Complete Livestock Scale

Includes the following:

Qty ( 1 ) Aluminum Alleyway Platform AP600 (24" x 87.5")

Qty ( 2 ) MP-600 Load Bars (4,400 lb capacity)

Qty ( 1 ) EziWeigh-5 Digital Indicator (battery operated)

Package Price: $ 2,225.00* (shipping add'l)

*If purchased separately:    $ 2,425.00 plus freight.
You Save $ 200.00 !
 Total Shipping Weight: 125 lb

System Package I: Complete Livestock Scale

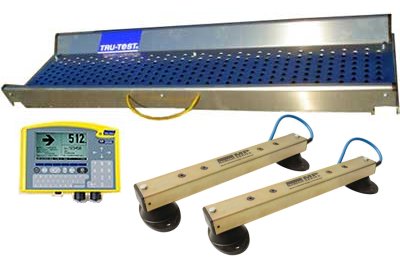

System Package II: Complete Livestock Scale

Includes the following:

Qty ( 1 ) Aluminum Alleyway Platform AP600 (24" x 87.5")

Qty ( 2 ) MP-600 Load Bars

Qty ( 1 ) ID-3000 Digital Indicator (battery operated)

Package Price: $ 3,125.00* (shipping add'l)


*If purchased separately:    $ 3,375.00 plus freight.
You save $ 250.00 !

 Total Shipping Weight: 127 lb

System Package II: Complete Livestock Scale











With the following equipment listed you can have a scale built to your requirements as easy as "A-B-C":

ROW A:      1.MP600 Load Bars       2.       3.

ROW B:      4.replaced by Model EZ-5         5. Basic weight readout      6.EziWeigh 7      7.        8.

ROW C (Optional)                  9.  Alleyway Platform AP600 (24" x 87.5")        10.Alleyway AP800 (34" x 87.5")





1) Tru-Test \96 Model MP Multi Purpose Loadbars

    Set of (2) loadbars made for use with Tru-Test indicators.  Designed for portability.

    With a firm and level surface, it\92s quick and easy to set up this scale.

    Multi purpose loadbars come in three lengths: 23\94, 32\94 and 39\94.  Coated to resist corrosion.

    <Click here for brochure>

 Part Number

Size

Capacity/ Set

 Weight/ Set

 Price/ Set

 MP-600 Loadbars

23\94 L x 3" W x 4\94 H

4,400 lb

33 lb

$ 1125.00

 MP-800 Loadbars

32" L x 3" W x 4" H

6,600 lb 48 lb

$ 1425.00

 MP-1010 Loadbars 39" L x 3" W x 4" H

6,600 lb

53 lb

$ 1675.00





2) Tru-Test \96 Model HD Heavy Duty Loadbars

    Set of (2) loadbars made for use with Tru-Test indicators.

    Designed for permanent installations.  Usually used under manual squeeze chutes.

    Their unique footing absorbs the tremendous side force which typically occurs, thereby

       preventing damage to the scale.

    Heavy duty loadbars come in two sizes: 34\94 and 39\94.  Coated to resist corrosion.
    <Click here for brochure>

 Part Number

Size

Capacity/ Set

 Weight/ Set

 Price/ Set

 HD-850 Loadbars

34\94 L  x  3" W  x  4\94 H

6,600 lb

81 lb

$ 1675.00

 HD-850-B Bracket Set

$ 95.00

 HD-1010 Loadbars

39" L  x  3" W  x  4" H

6,600 lb

92 lb

$ 1685.00

 HD-1010-B Bracket Set

$ 110.00

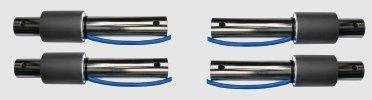

3) Tru-Test \96 Model XHD Extra Heavy Duty Loadbars

     Set of (4) load cells made for use with Tru-Test indicators.  Primarily under hydraulic squeeze chutes.

     Designed for permanent installations where extra capacity and durability is required.

     Their industrial strength construction and special load centering cup design make them the choice for feedlots and cattle.

     Extra heavy duty load cells are coated to resist corrosion.

 Part Number

Size

Capacity/ Set

 Weight/ Set

 Price/ Set

  XHD-10000 Load Cells



10,000 lb

31 lb

$ 1750.00

  XHD-10000B Bracket Assembly

    62 lb $ 295.00





4) Tru-Test \96 Model EziWeigh 2 Indicator

    Extremely simple to use.  Fine mode allows smaller resolution that is necessary for weighing small animals.

    Auto zero to accommodate dirt buildup.

    Hold key will retain displayed weight even after the animal leaves the scale.

    Pushbutton keys for ON/LIVE, OFF,  AUTOZERO, HOLD, FINE, ZERO.

    EziWeigh 2 has internal rechargeable batteries for 8 hours of operation.  12VDC.

    <Click here for brochure>

 Part Number

Size

 Weight

 Price

EziWeigh 2 Indicator

4" x 7"

3 lb

discontinued.





5) Tru-Test \96 Model EziWeigh 5 Indicator

    Basic weight readout.

    Fine mode weighing option.

    Internal battery up to 20 hours continuous use per charge.

    Large 1.375" LCD with backlight.

    <Click here for brochure>

 Part Number

Size

 Weight

 Price

EziWeigh 5 Indicator

4" x 7"

4.4 lb

$ 745.00





6) Tru-Test \96 Model EziWeigh 7 Indicator

    EID Compatible.

     Internal bluetooth for Electronic ID (EID) interface. Record weight, visual ID, electronic ID.
    Internal memory up to 15,000 weights; 100 weigh sessions; average daily gain; comment field; 3-way weight sort.
    Download animal data.
    Internal battery up to 20 hours continuous use per charge.
    Large 1.375" LCD with backlight.


    <Click here for brochure>

 Part Number

Size

 Weight

 Price

EziWeigh 7 Indicator

4" x 7"

4.7 lb

$ 1295.00





7) Tru-Test \96 Model ID-3000 Indicator

EID Compatible.

Collect EID and visual tag.
    Cross-reference between ID Fields.
    Stores up to 10,000 individual animal records in 25 user definable files.


Stores animal data in 50 files, alpha-numeric.
    Calculates average daily weight gain.
    3-way sorting.
    12-digit user-defined file code field.
    Downloads animal data.


     <Click here for brochure>

 Part Number

Size

 Weight

 Price

ID-3000 Indicator

10.6" x 7.5"

7  lb

$ 1695.00




 8)  Tru-Test \96 Model XR-3000 - Bluetooth Indicator

EID Compatible.
Includes all the features of the SR-3000 above plus the following:
Stores up to
50,000 individual animal records.
Stores animal data in 200 files.
Eight data fields (EID, visual ID, breed, sex, DOB, etc.).
Three file code fields.
Customizable life data and file code field names.
Pre-set data lists for life data and file code fields.
Animal history table provides full history including weight, treatment and birth rates.
Build customized reports.  Multiple data fields for recording additional information.
Custom fields provide fast entry of data from preset tables.
10-way sorting.
On screen graphs.
Store animal vaccinations.
Interface with automatic sort gates.
Keys for ON, OFF, ESCAPE, SETUP, INFO, BACK, ENTER, keypad 0-9, keypad A-Z, space shift.
RS232 output for printer or computer.
12 VDC. IP67.
Includes bluetooth wireless communication.
Optional: internal battery.

<Click here for brochure>

 Part Number

Size

 Weight

 Price

XR-3000 Indicator - Bluetooth

10.6" x 7.5"

5  lb

$ 2195.00

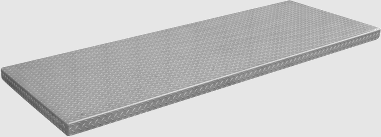

  9)   Tru-Test \96 Alleyway Platform AP600

    Portable aluminum flat platform, low profile design, no sides, no sharp edges; 3/8" rubber mat.
    Fits standard alleyway applications. For use with MP-600 loadbars. (Included with System Packages)
    Dimensions: 24" W x 87.5" L
    <Click here for brochure>

Item

Size

Capacity

 Weight

 Price

Aluminum Alleyway Platform AP600

24\94 W  x  87.5" L

4,400 lb

87 lb

$ 565.00



.

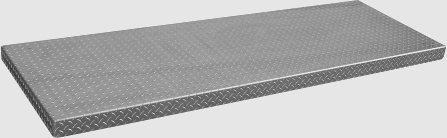

10)  Tru-Test \96 Alleyway Platform AP800

     Portable aluminum flat platform with no sides, low profile design, no sharp edges; 3/8" rubber mat.
     Recommended for most grooming shutes. For use with MP-800 loadbars.
     Optional rubber mat available (see below)
     Dimensions: 28" W x 83" L

Item

Size

Capacity

 Weight

 Price

Aluminum Alleyway Platform AP800

34\94 W  x 87.5" L

4,400 lb

126 lb

$ 825.00


11)  Tru-Test \96 Rubber Mat

Rubber mat for Alleyway  AP600 or AP800 above.
     Recommended for equine applications.
     Pre-assembled when ordered with platform.

Item

Size

Capacity

 Weight

 Price

Rubber Mat

please call us

n/a

50 lb

please call us






Other options
The following options are also available. Please call us for compatibility and pricing not listed herein.



 Item

Description

 Weight

 Price

Car Charger, 12V USB 12V Car Charger for EziWeigh5 or EziWeigh6 1 lb $ 30.00
EID RS232 Serial Cable Interface cable to connect RS232 EID Stick Readers to EziWeigh6 1 lb $ 40.00
Carry Case Designed to fit the Series 3000 Indicator and most EID stick readers. Protects product and keeps accessory items together. 4 lb $ 115.00
Load Bar Plates For use with the MP600 load bars in applications with unstable ground. Hardware included (does not include load bars). 36 lb $ 125.00



To order scale desired please choose one from Row A and one from Row B above.
Row C is optional as you may choose to construct your own platform.

For further assistance please do not hesitate to call us at 1-800-836-8445 or 631-342-1975.





Model VD-1000
Vet-Deck Floor Scale
Features:


Versatile-The Vet-Deck accomplishes a multitude of weighing jobs on the farm. It fits easily into alleyways for weighing market hogs, nursery pigs or other livestock. It's low profile makes it easy to weigh feed carts and bulk containers. The non-skid surface protects you and your livestock from accidental slips and falls. The adjustable footpads allow it to work effectively on uneven floors.

Portable-The Vet-Deck is easy to move, weighing only 55 pounds. You can set it in place without ramps or recessed floors because it's only 1.75 inches high.

Economical-The Vet-Deck has no installation costs. And its Weigh Bar\AE system means it has no moving parts that require maintenance or adjustments.

Accurate-The Vet-Deck gives you constant accuracy, within 0.5% and it is compatible with a number of indicators for fast digital readout.

Dependable-The Vet-Deck is built to withstand rigorous daily use. Your investment is backed by a one-year warranty.

Platform Specifications:

Capacity: 1000 lbs
Overall height: 1.75"
Accuracy: 0.5%
Deck dimensions:
20" x 50" x 1.75"
Weight: 55 lbs
Adjustable footpads
Warranty:
1 Year

Model S200E Weight Indicator Specifications:
  • High Quality / Low Cost

  • NTEP Approved for 5,000 divisions

  • Full Duplex RS-232 Serial Port

  • Easy to Read LED Display

  • Displays up to 50,000 graduations

  • Drives up to four 350-ohm Load Cells

  • Full Front Panel Configuration

  • Stainless Steel Swivel Stand

  • Operates on AC Adapter or Car Battery

Model VD-1000 Vet-Deck (Platform Only) . . . . . . .       Price:   $ 845.00
Model VD-1000-S200E Vet-Deck with Display . . .      Price:    $ 990.00
                                                                                                                                                                                                                                                                                            rev 01-2009
